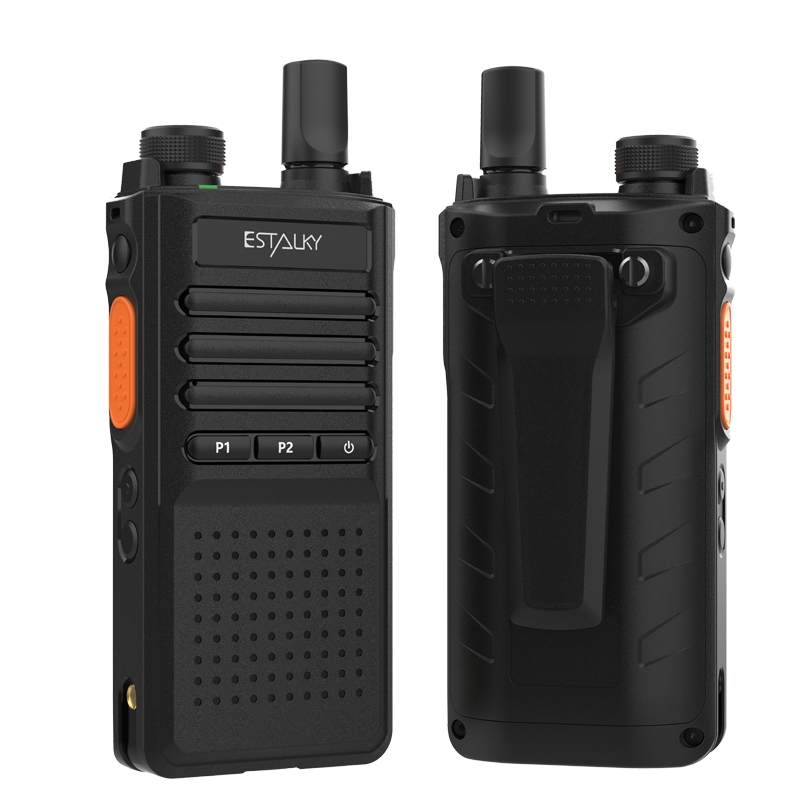

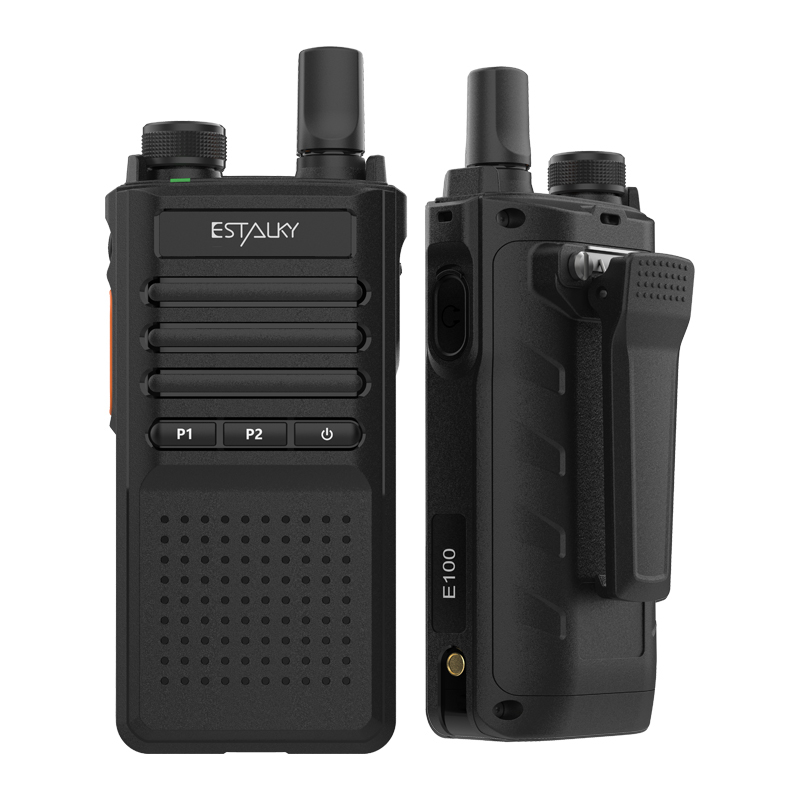

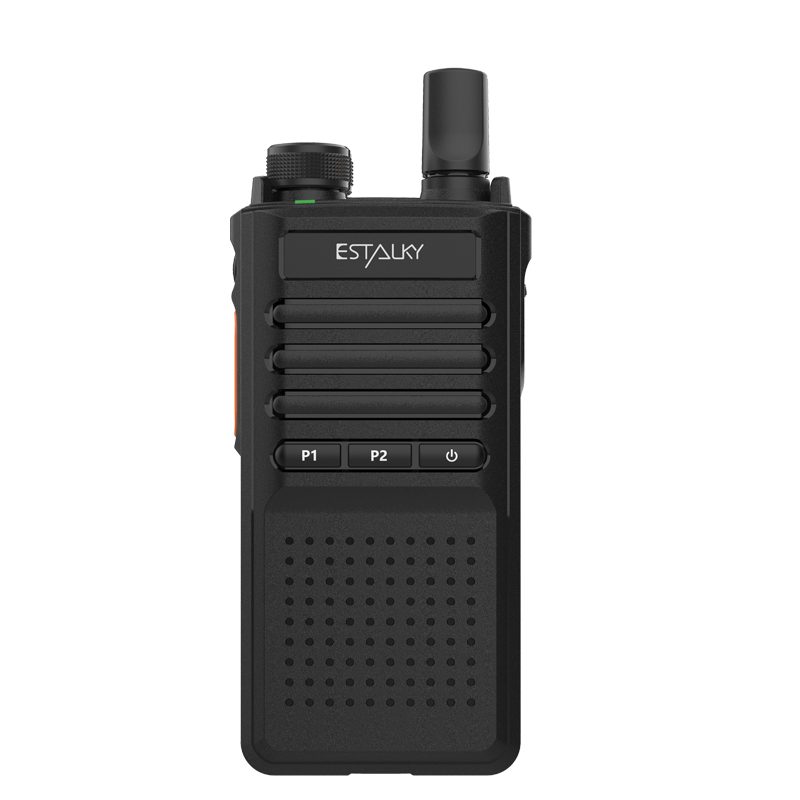

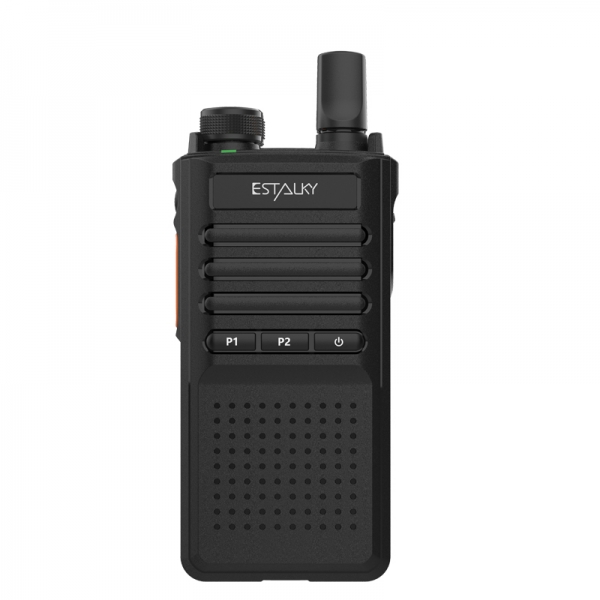

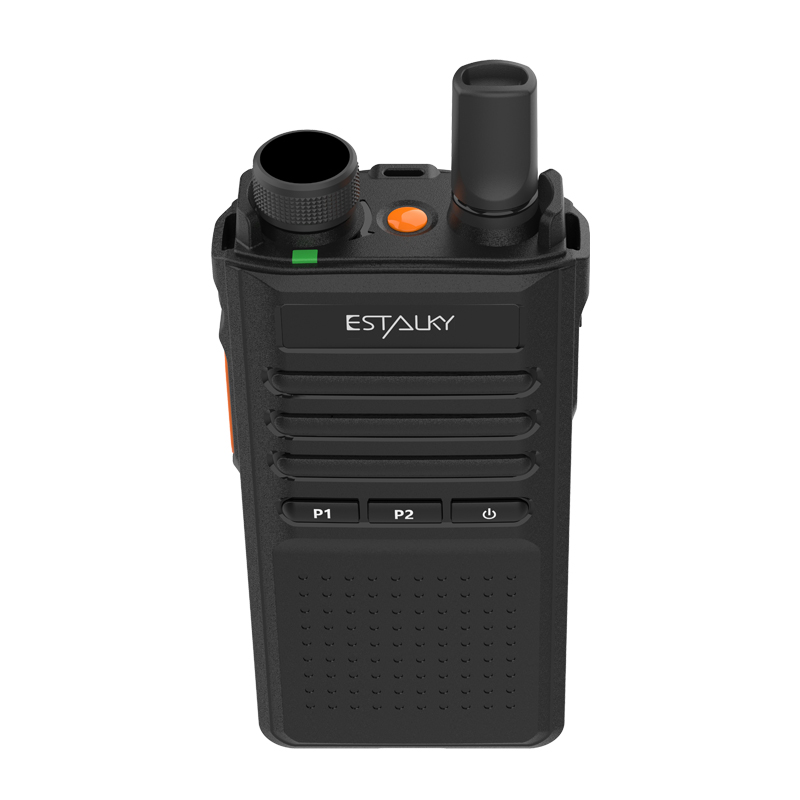

E100
Estalky E100 is a rugged screenless PoC cellular radio built for harsh industrial and outdoor work scenarios. Equipped with a 3W high-power speaker and professional noise reduction algorithm, it delivers clear loud audio in noisy environments.
It supports full core POC functions including PTT push-to-talk, rotary channel selector, emergency SOS alarm, team group calling and real-time GPS personnel positioning. Designed for glove-friendly blind operation, it features low power consumption for long-duration continuous communication and group dispatching tasks.

Certified to IP68 waterproof/dustproof standard and MIL-STD-810G military specification, the radio boasts excellent resistance against drops, extreme temperatures and vibration. It is the ideal communication device for construction sites, security patrols, logistics transportation, industrial parks, municipal engineering, property management, large supermarkets and hotel complexes.

The Estalky E100 is a heavy-duty, screenless Push-to-Talk over Cellular (PoC) radio engineered for extreme professional environments. Running on a reliable Android 8.1 OS, this device completely eliminates the fragile glass screen, shifting the focus entirely to distraction-free operation, ultimate drop safety, and exceptional battery life. Designed for teams who need immediate, ironclad voice communication over public networks, the E100 combines high-end audio hardware with an ultra-rugged chassis.it also design with 7000mah large battery to keep your communication never be end.





Feature Technical Description
1、HW SPEC
1.1 Main CPU & SW
CPU MTK8765 ,GPU 1.5Ghz
Android Android 8.1 GO
Language Multi Language
1.2 Memory
RAM+ROM 512MB+4GB(1GB +8GB optional )
SD Card None
1.3 LCD
LCD No Screen
LCD resolution None
LCD Colors None
1.4 Touch
Touch type & size None
Glass China made
Multi-touch None
1.5 Sensor
Sensor G-Sersor/Acceleration Sensor
1.6  Frequency/Bands
Network( GSM, WCDMA, FDD, TDD) Asia/EU Version:
2G: GSM B2/B3/B5/B8

3G:WCDMA: B1/B2/B5/B8 TSD B34/B39
TD-SCDMA: B39/B34
FDD-LTE: Band B1/ B3/B5/B7/ B8/B20/B26/B28 (a&b)
TDD-LTE: Band B34/B38/B39/B40/B41
US Version:
GSM: B2/B3/B5/B8
WCDMA: B2/B4/B5
LTE: B2 / B4 / B5 / B7 / B12 / B13 / B17 / B28a / B28b / B66
1.7 Camera
Front& Rear Camera None
1.8 Wi-Fi
IEEE802.11a Yes (5G)
IEEE802.11b Yes(2.4G)
IEEE802.11g Yes(2.4G)
IEEE802.11n  Yes(2.4G&5G)
WIFI anternna Type Wi-Fi & BT Coexistence Internal  antenna
1.9  Bluetooth
Version BT V4.2
Power Level (Max) Class 2
Operation distance (Max) 10 meter
2.0 GPS & A-GPS
GLONASS Support Yes
GPS Support Yes
AGPS Support Yes
BDS Yes
2.1 Speaker & MIC
Output 3W speaker
SPL 106db Under Smart Noisy Reduction
Receiver 1506
MIC Type Single Pole Mic
MIC Sensitivity -42dB±3
SIM card TWO Nano-SIM card
Vibrator None
2.2 USB
USB type  TYPE C
USB  None
Cable length 1.0m
2.3 Earjack Interface Type 3.5mm PTT
2.4 Indicator LED 3-colors(Red, Green, Blue)
3、MD
3.1 Size
Height ( H * W * D ) 117 x 60 x 29.2mm
Weight  261g
IP code IP68
Drop Test  1.8m
3.2 Key buttons

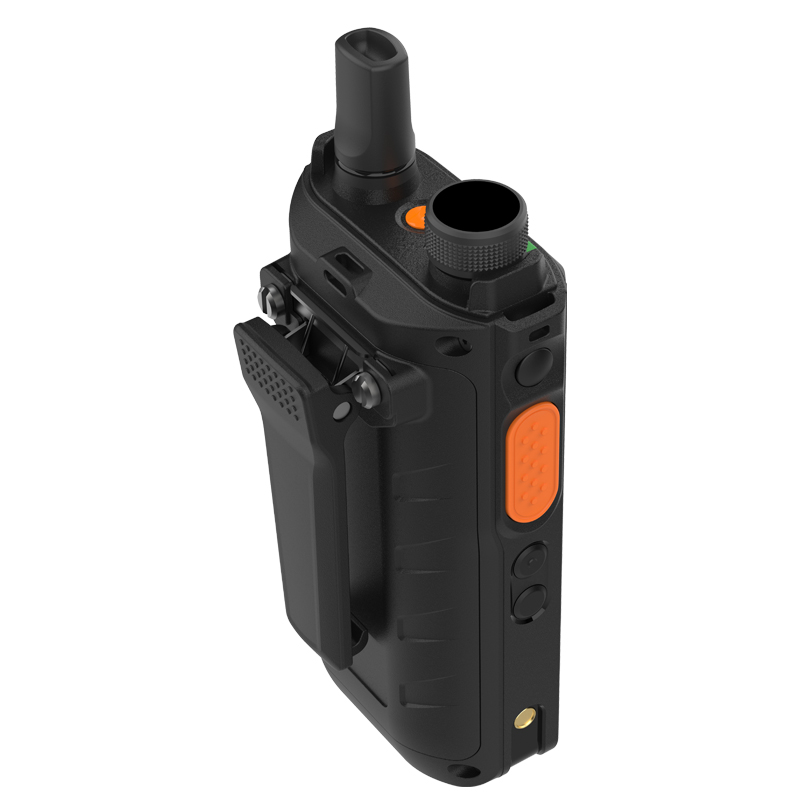

keys button PTT Key / Volume UP / Down Key / Function Key / SOS Key / Power Key/Channel knob
4、 Battery
Battery type Li-Po
Battery capacity 7000 mAh with MSDS, UN38.3.IEC62133
Removable battery Yes
5.1 Charging
Micro USB ( For Handset ) Yes
Battery charging terminal(For Cradle) Cradle charging
5.2 Cradle Spec
Input voltage  DC 5V/2.0A
Output voltage DC 5V/2.0A
Interface Type TYPE-C Connector (Replace old version Micro-USB)
5.3 Phone Adaptor Spec
Input voltage AC 100-240V, 50 / 60Hz, 0.3A
Output voltage DC 5V / 2.0A
Interface Type Standard USB
6、 Environmental Conditions
Operating Temperature  -20℃ ~ 60℃
Storage Temperature   -30℃ ~ 70℃
Humidity 20% ~ 90%
ESD  Contact:  ±8KV
Air:  ±12KV
ROHS 6 Compliant Yes
7、 Certification and safety spec
Europe CE
American FCC
