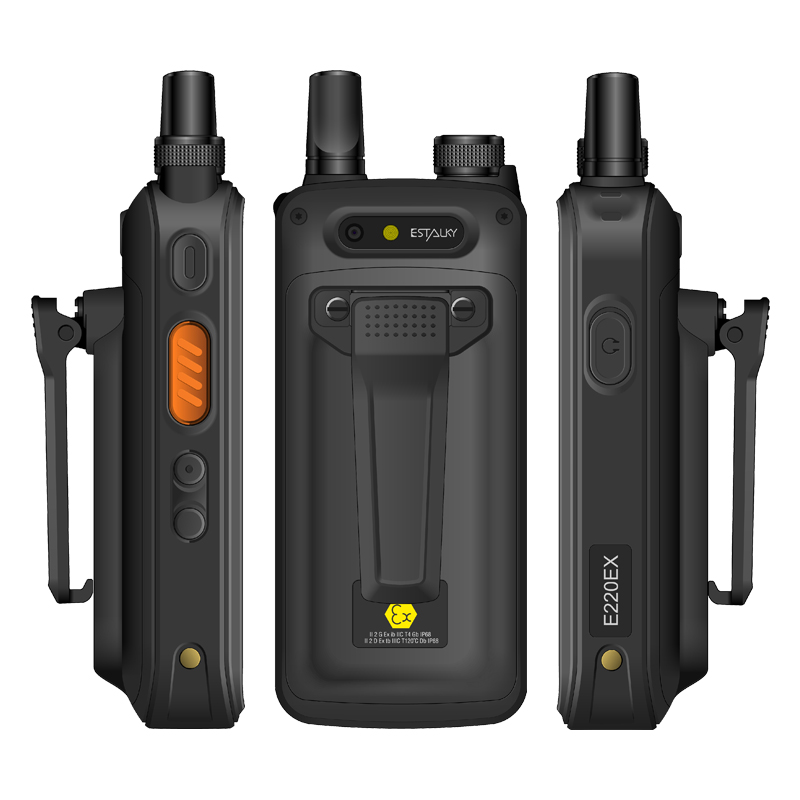

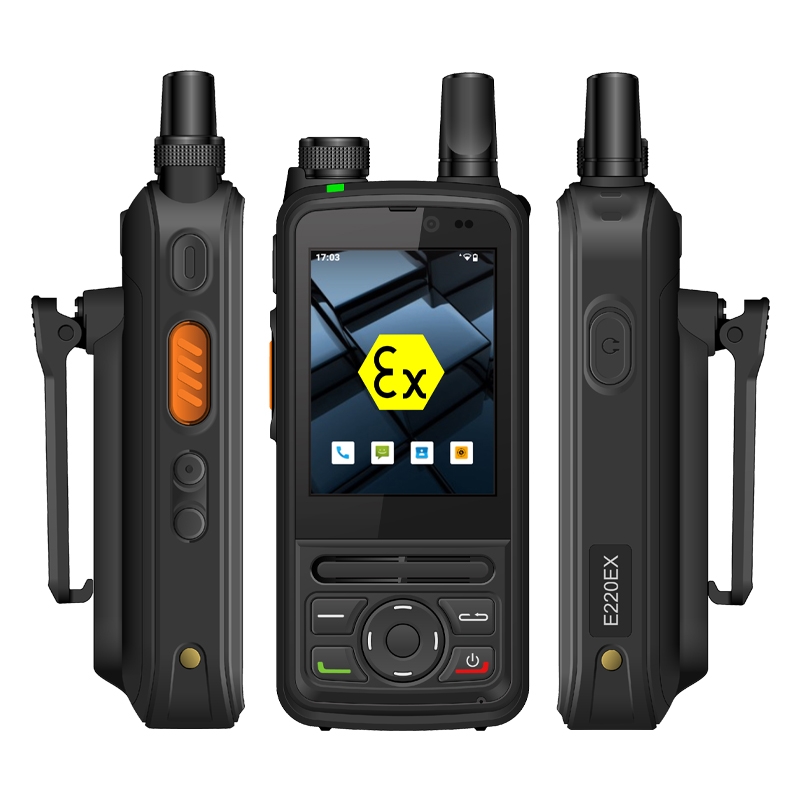

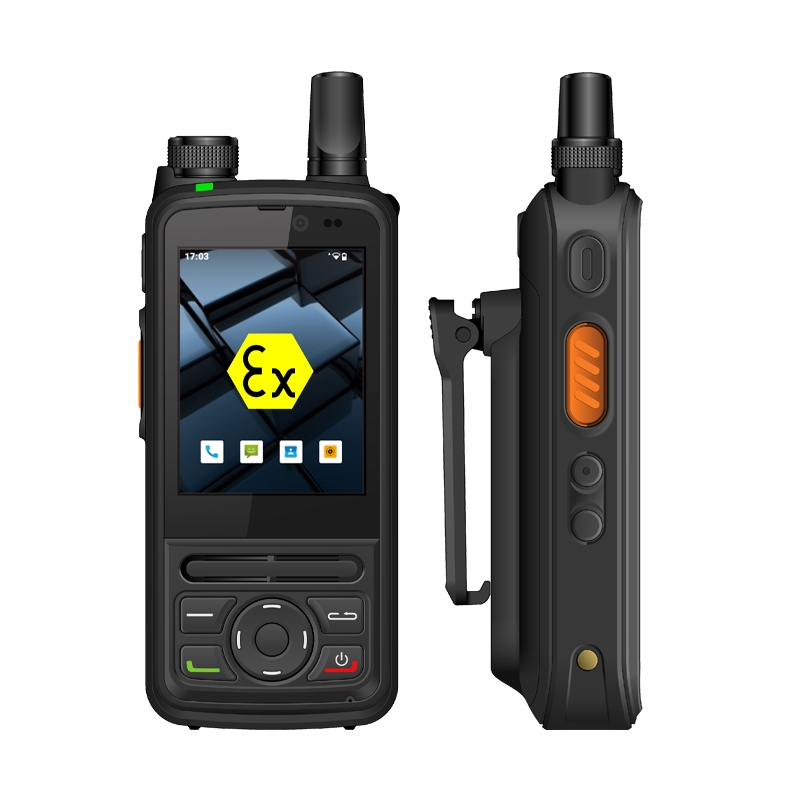

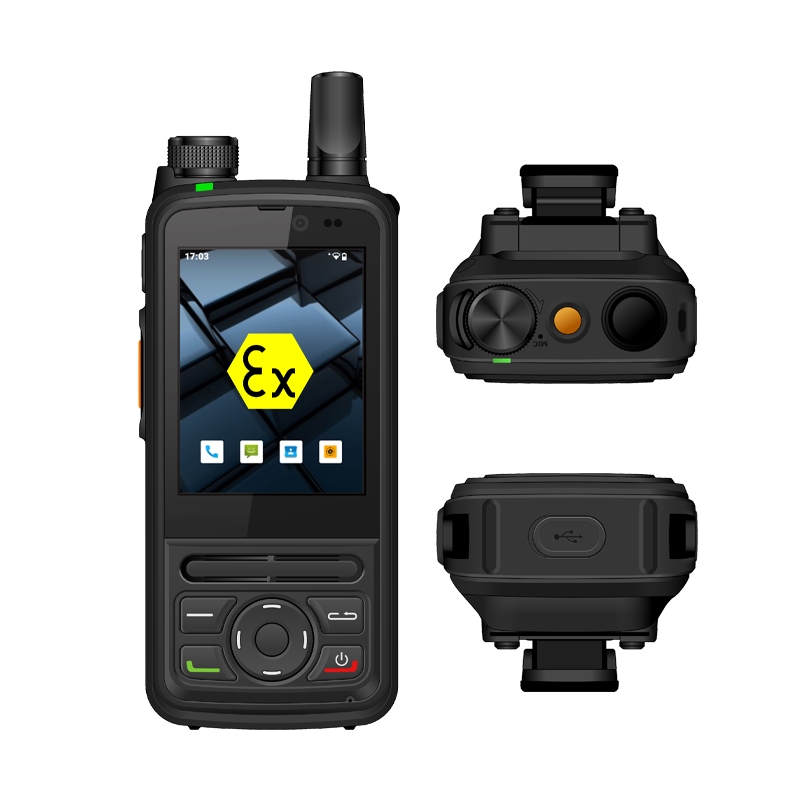

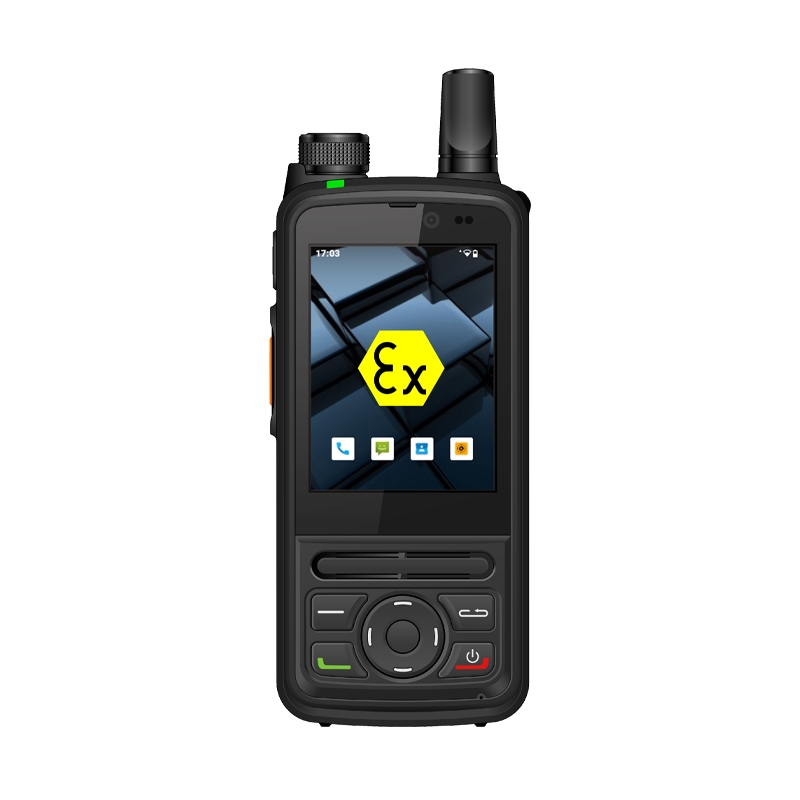

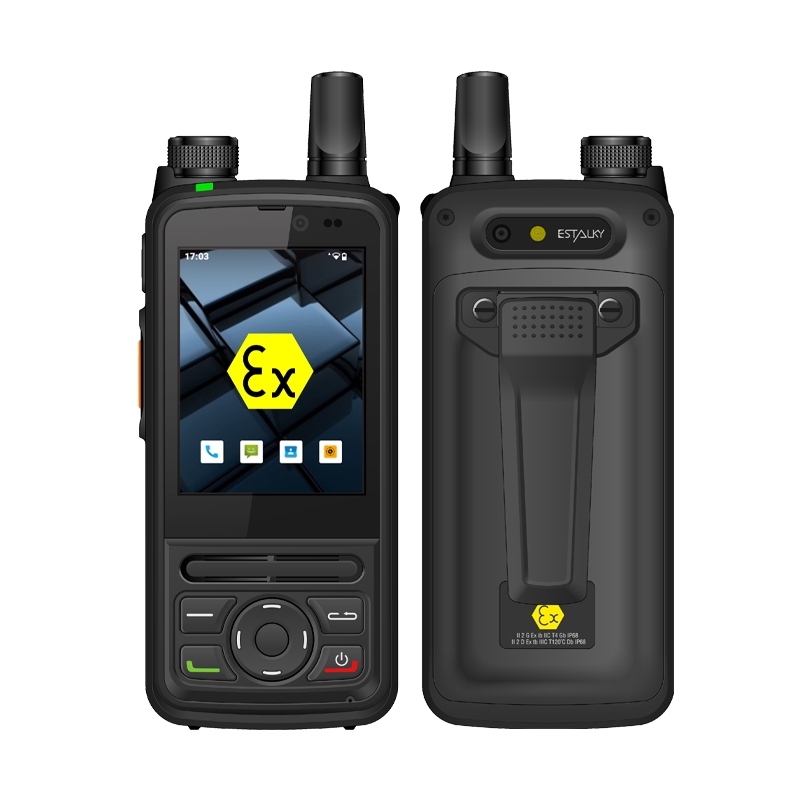

E220 EX

Estalky E220 EX is a newly launched intrinsically safe 4G smart PoC radio, designed to deliver high-performance communication and digital management for business users operating in hazardous environments with combustible gas or dust. It meets rigorous intrinsically safe explosion standards: II 2 G Ex ib IIC T4 Gb IP68 & II 2 D Ex ib IIIC T120°C Db IP68.

E220 EX runs on the Android OS, empowering users to run mainstream third-party PTT applications (such as Zello, GXINPOC, etc.) for instant group communications over 2G, 3G, or LTE networks. It is widely applied in industries such as oil & gas, chemical plants, refineries, security, and utilities.

Featuring a clear HD touch screen combined with a physical semi-keypad, it offers intuitive and efficient operation. Built with an advanced AI noise cancellation algorithm and a powerful 3W speaker, it ensures loud and crystal-clear audio even in extreme industrial noise. Additionally, it is equipped with cameras for real-time video dispatching, and a reliable explosion-proof battery for all-day, multi-shift operations.





Feature Technical Description
1、HW SPEC
1.1 Main CPU & SW
CPU MTK8766 ,GPU 2.0Ghz
Android Android 13 OS
Language Multi Language
1.2 Memory
RAM+ROM RAM+ROM: 2GB +16GB
SD Card None
1.3 LCD
LCD 2.8 TFT
LCD resolution 640*480 RGB
LCD Colors 16M Color IPS TFT
1.4 Touch
Touch type & size 2.8 inch IPS Tempered Glass
Glass China made
Multi-touch Supported
1.5 Sensor
Sensor Geo-Sensor / Proximity Sensor / Light Sensor
1.6  Frequency/Bands
Network( GSM, WCDMA, FDD, TDD） GSM: B2/B3/B5/B8
WCDMA: B1/B2/B4/B5/B8
CDMA: CDMA2000 1X/EVDO BC0
TDD: B34/B38/B39/B40/B41
FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/
B20/B25/B26/B28A/B28B/B66
1.7 Camera
Front& Rear Camera Front 5.0MP, Rear 13.0MP
1.8 Wi-Fi
IEEE802.11a Yes (5G)
IEEE802.11b Yes(2.4G)
IEEE802.11g Yes(2.4G)
IEEE802.11n  Yes(2.4G&5G)
WIFI anternna Type Wi-Fi & BT Coexistence Internal  antenna
1.9  Bluetooth
Version BT V4.2 with BLE / BT2.1 + EDR ( Enhanced Data Rate )
Power Level (Max) Class 2
Operation distance (Max) 10 meter
2.0 GPS & A-GPS
GLONASS Support Yes
GPS Support Yes
AGPS Support Yes
BDS Yes
2.1 Speaker & MIC
Output 3W speaker
SPL 106db under AI noise cancellation
Receiver 1506
MIC Type Single Pole Mic
MIC Sensitivity -42dB±3
SIM card TWO Nano-SIM card
Vibrator Yes
2.2 USB
USB type  TYPE C
USB  USB2.0
Cable length 1.0m
2.3 Earjack Interface Type 3.5mm PTT
2.4 Indicator LED 3-colors(Red, Green, Blue）
3、MD
3.1 Size
Height ( H * W * D ) 130.8 x 60 x 27.6mm
Weight  269g
IP code IP68
Drop Test  1.5m
3.2 Key buttons
keys button PTT Key / Volume UP / Down Key / Function Key / SOS Key / Power Key/Channel knob
4、 Battery
Battery type Li-Po
Battery capacity 4800 mAh IS Explosion battery
Removable battery Yes
5, Charge&Date Interfaces
5.1 Charging
Handset Charging Type-C USB
Battery charging terminal（For Cradle) Cradle charging
5.2 Cradle Spec
Input voltage  DC 5V/2.0A
Output voltage DC 5V/2.0A
Interface Type Type-C USB
5.3 Phone Adaptor Spec
Input voltage AC 100-240V, 50 / 60Hz, 0.3A
Output voltage DC 5V / 2.0A
Interface Type Standard USB
6、 Environmental Conditions
Operating Temperature  -20℃ ~ 60℃
Storage Temperature   -30℃ ~ 70℃
Humidity 20% ~ 90%
ESD  Contact:  ±8KV
Air:  ±12KV
ROHS 6 Compliant Yes
7、 Certification and safety spec
Europe CE
Ex-Certification II 2 G Ex ib IIC T4 Gb IP68           II 2 D Ex ib IIIC T120°C Db IP68
