MIC002
Estalky Remote Speaker Mircophone MIC002 has a built-in amplifier for ultra-loud and clear audio.

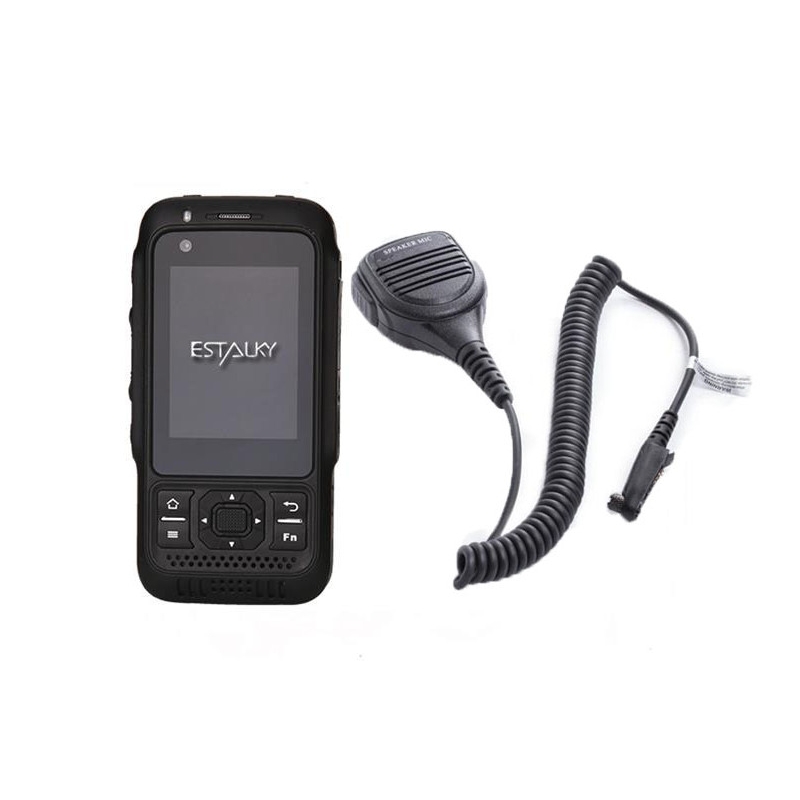

Designed the RSM to reliably connect to Estalky Smart PTT Handsets Connector on E550 and R887
It connected with M6 connector allows the VALOR RSM connector to screw into the handsets and draw power.


NOISE REDUCTION MICROPHONE

Estakly MIC002 Romote Speaker Microphone(RSM)has a built-in amplifier for ultra-loud and clear audio,designed the RSM to reliably connect to Estalky Smart PTT Handsets Connector on E550 & R887.



3.5MM EARPHONE JACK

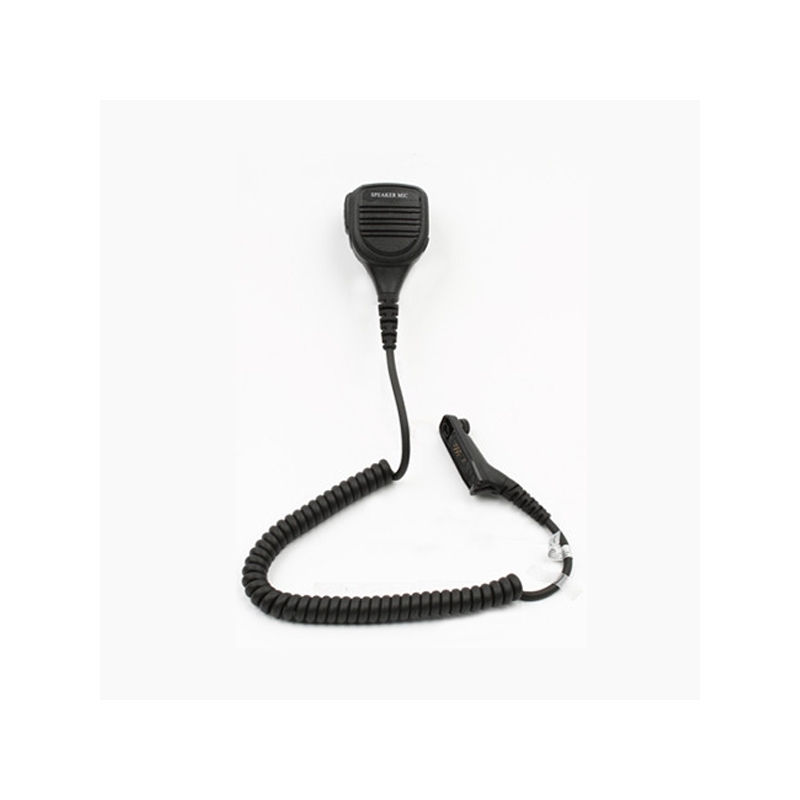

Remote Speaker Microphone with Coil Cord and Swivel Clip and a 3.5mm Audio Jack for earset connections.
M6 CONNECTOR PORT

MIC002 connected with M6 connector allows the VALOR RSM connector to screw into the handsets and draw power.
Model: MIC002
-Work Temperature  -40°C –100°C
-Built-in amplifier for loud and clear audio
-Microphone Sensitivity at 1kHz -45 to -39dB
-Microphone Output Impedance at 1kHz 300 Max Ω
-Microphone Signal / Noise Ratio at 1kHz 55 to 60dB
-Rugged rubber overmold design, with contoured edges for comfortable grip
-Optional listen-only headsets, eartips and in-vehicle holder available
